product details / scope of delivery

Description:

  • Advanced Diffusion Charging measurement principle
  • Particle counter with integrated display unit

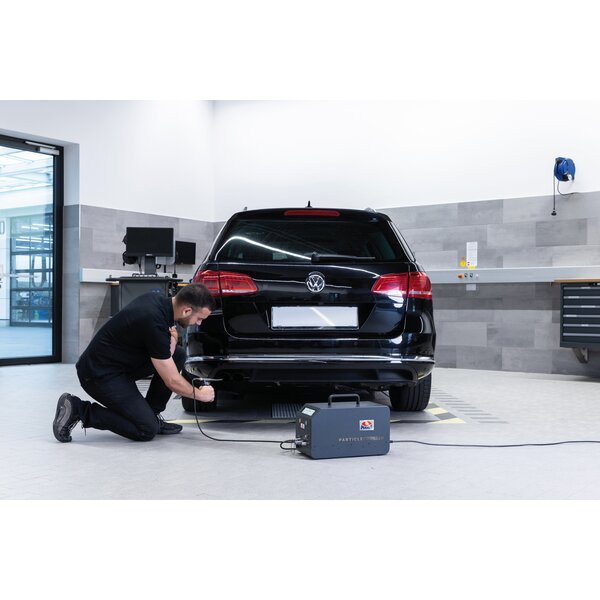

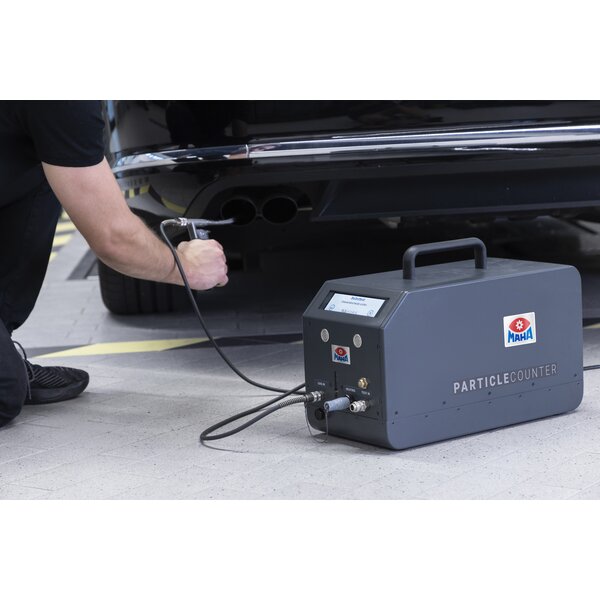

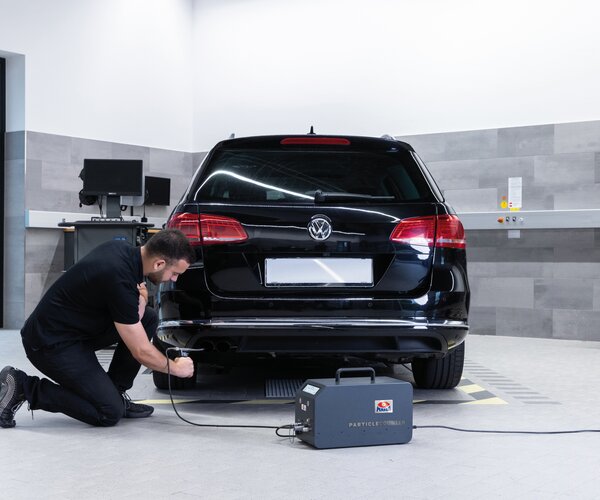

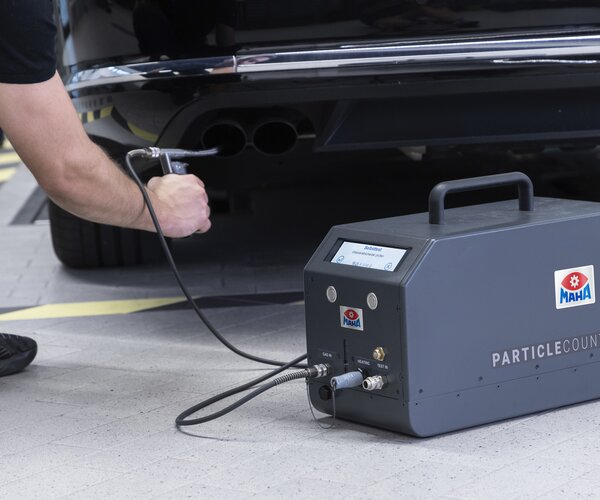

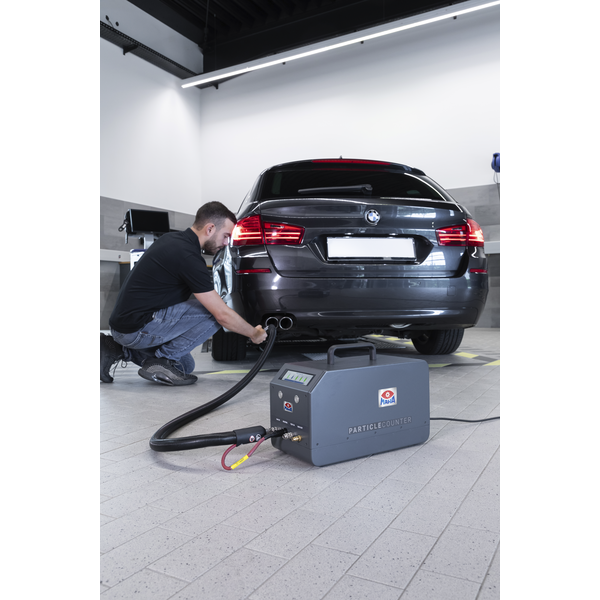

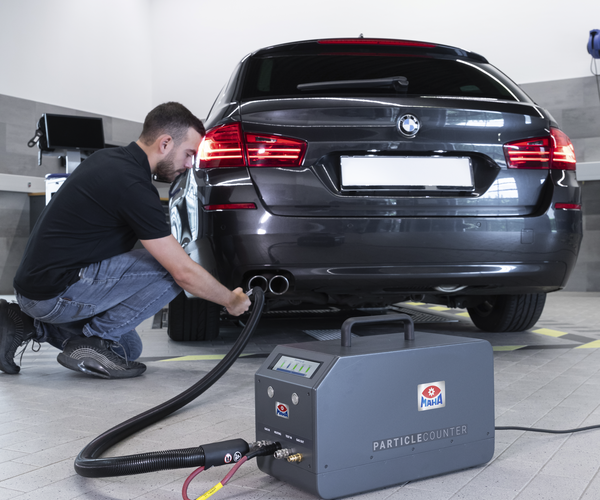

  • Time-saving and simple examination and diagnostics of particle count via partial flow method
  • Low maintenance
  • No consumables
  • USB and Bluetooth interfaces
  • Heat-up time <(><<)> 4 min.
  • DAkks-conform calibration acc. to ISO 17025 via EWR MESSGERÄTE GmbH


Options:

  • Connection to MES 7.51 (for Germany)


Scope of delivery:

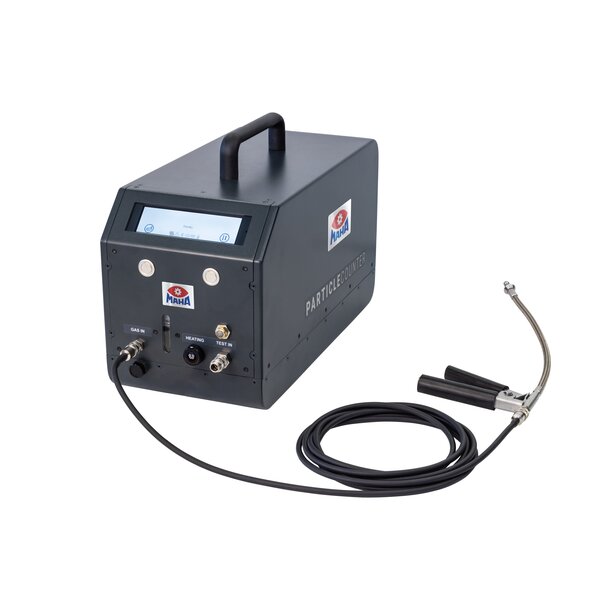

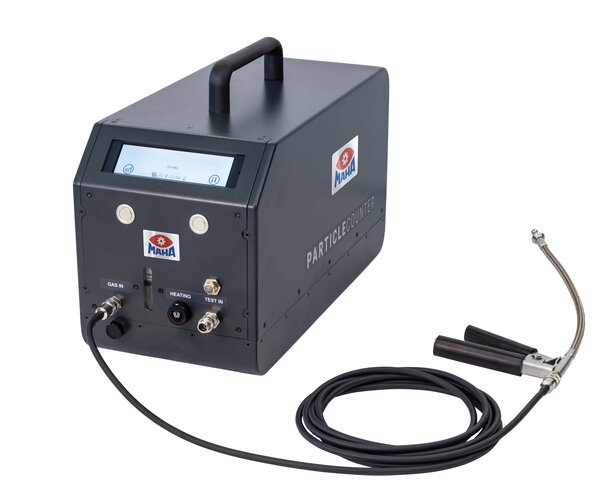

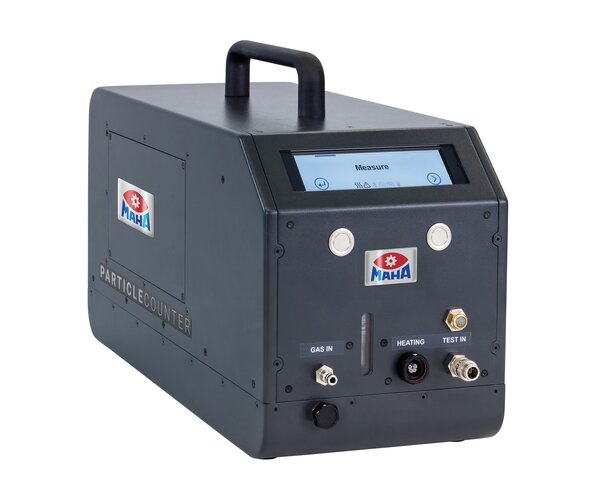

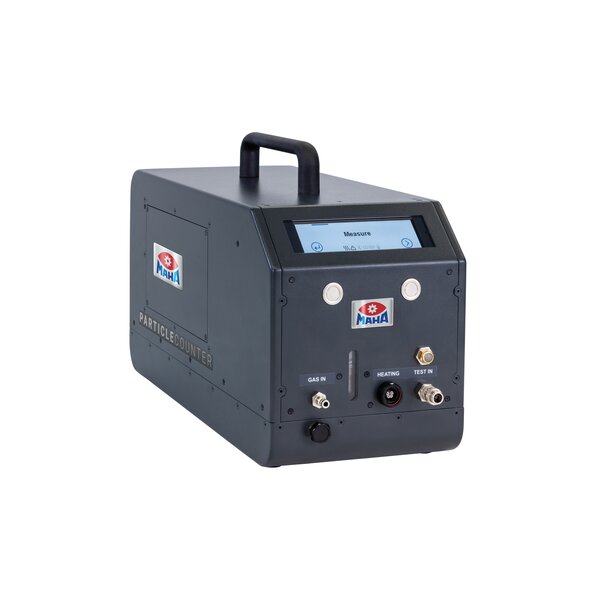

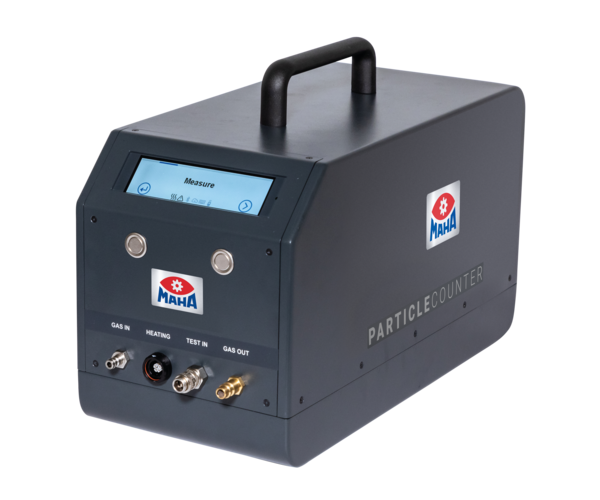

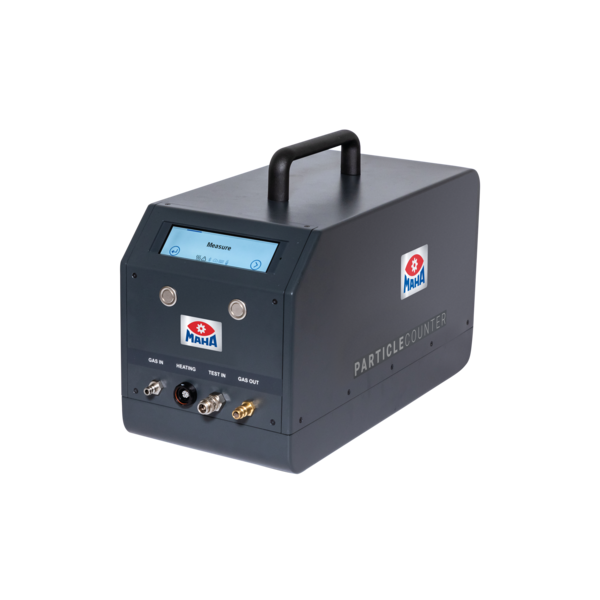

  • Basic particle counter unit in high-quality metal casing
  • Integrated display unit with keypad
  • USB interface
  • Bluetooth interface
  • Packaging included


Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical data:

Measurement principleAdvanced Diffusion Charging
Heat-up time of measurement cell<(><<)> 240 s
Dimensions (LxWxH)505 x 210 x 310 mm
Weightapprox. 8.5 kg
Power supply110-230 V/50/60 Hz
Measurement range0...10.000.000 #/cm3
Volatile particlesRemoving Efficiency > 95%
Efficiency23nm 5%: 0.2 - 0.6
.50nm 5%: 0.6 - 1.3
.70nm 5%: 0.7 - 1.3
Error (absolute)10000#/cm3
Error (relative)75% (of measured value)
Measurement frequency1 Hz
