product details / scope of delivery

Description:

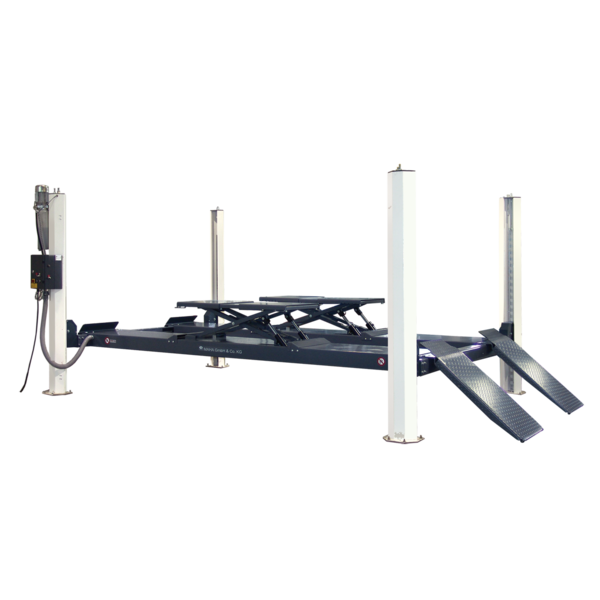

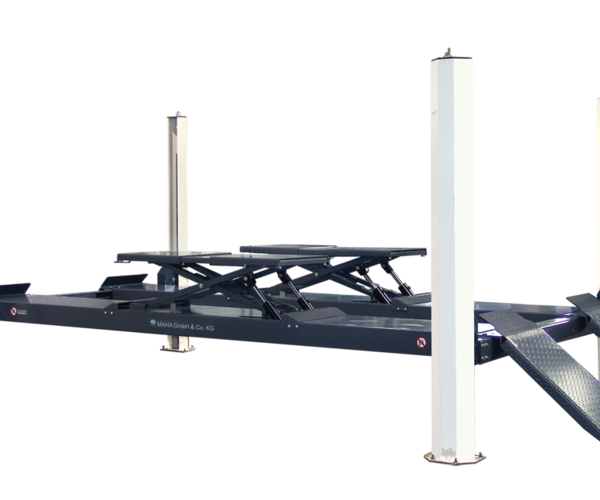

  • Four post lift with electro-hydraulic drive unit for surface mounting
  • Precision wheel alignment design
  • Special runway profile and reinforced crossbeams for high flexural resistance and long-term stability
  • Torsion-free, high-precision fine adjustment of the platforms to the crossbar, resulting in perfect conditioning for wheel alignment
  • Extra reinforcement plates welded onto runways for optimum stability
  • Large runway width for all vehicle track widths
  • Runways equipped with pre-integrated guide rail for axle lift
  • Lowering device for chassis alignment included as standard, with precision-adjustable lock ladder and electromagnetically operated latches
  • Low travel height for easy drive on
  • Emergency DOWN feature in case of power failure
  • Paint: high-quality powder coating:
    • Window Grey, RAL 7040 (Columns)
    • Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Traverses)


Scope of delivery:

  • Four-post lift, Type CARLIFT II 4.0 W
  • Operating box with control and hydraulic power unit
  • Lockable main switch
  • Settling device for wheel alignment
  • 2 pieces drive-on ramps, 2 pieces roll bar
  • Operating manual and inspection log book
  • EC Declaration of Conformity CE
  • Transport packaging

Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Load capacity CE4000 kg
Max. lifting height1995 mm
Lifting /lowering time (depends on load)approx. 30/30 s
Total dimensions (L x W)5790 x 3480 mm
Drive-on height175 mm
Drive-on height with wheel-free jack175 mm
Drive-on height with setup for wheel alignment225 mm
Drive-on height with setup for wheel alignment
and wheel-free jack225 mm
Platform dimensions (L <(>&<)> W)4400 x 630 mm
length, optional4800 mm
Column width clearance2900 mm
Driving platform clearance950 mm
Drive power2.2 kW
Power supply3/N/PE 400 V 50 Hz
Fuse gG16 A
Weight1500 kg
Hydraulic oil volume (not included)10 l
Packaging dimensions (L x W x H)4400 x 800 x 1200 mm
