ZS DUETT 3.5 FT VP 252319

product details / scope of delivery

Description:

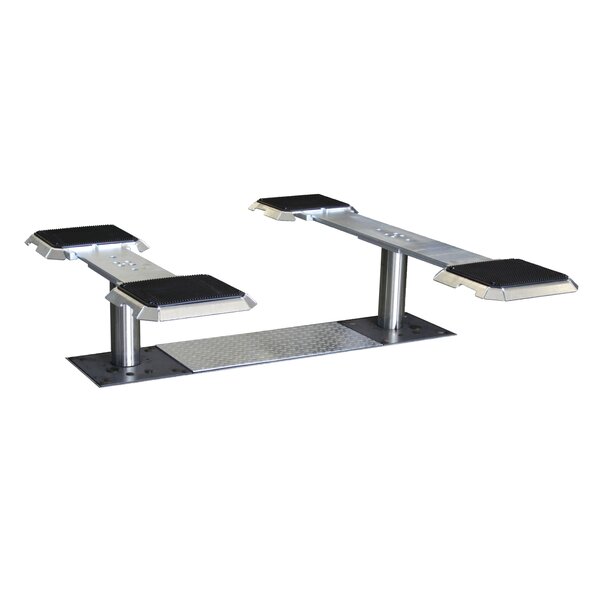

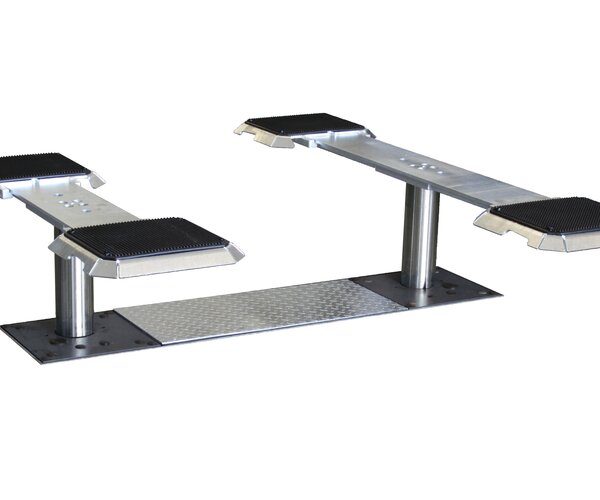

Two-post inground lift with flat head supports,
to pick up vehicles in the sill area.
Suitable for cars, pick-up points underneath the vehicle

Flat head support (FT H):

• Flat head extensions adaptable for different vehicle types, telescopic from 1400 - 2000 mm in standard
• Flexible, optional range of support plates in 'longer - wider - flatter' versions ensures perfect accommodation of all current and future vehicle models
• Large pick-up areas due to exchangeable support plate system cover the entire vehicle spectrum
• Easier, tyre-preserving drive-on thanks to all-round bevelled extensions combined with low construction height and rubber support plate (height no more than approx. 60 mm)
• Rubber support plate enables time-saving direct pick-up
• Optional flush-floor installation for easier passing over lift

DUETT lift unit:

• Lift with precise mechanical toothed rack synchronisation and simultaneous redundant mechanical safety feature
• Corrosion-proof hydraulic piston, self-lubricating since it dips into hydraulic oil with each stroke
• Low-noise operation due to very quiet motor in the installation box
• Optionally usable with mineralorganic oil with high durability
• Electronic lift control with visual error display
• Hydraulic power unit inside installation box (standard), can optionally be positioned outside
• Simple, suspended installation of the lift, ensuring advantageous force transmission into the hall floor
• High lifting/lowering speeds are guaranteed in a load-dependent range of 30 ýÿ 35 seconds
• Integrated, battery-operated emergency lowering
• Optimum workplace ergonomics thanks tooptional, standard-independent control system via energy box or flush-mounted switching system

Scope of delivery:

• Flat head supports, hot-dip galvanised
• Medium-pressure lift unit with clamping system
• Wiring and mounting material
• Installation box/installation frame not included in delivery
• Emergency lowering cable for connection to switch box
• Control unit with 2 x 10 m control cable (oil flex cable)
• Lockable main switch
• Pinch point protection by CE stopinstead of foot guard
• Operating instructions
• CE/UKCA Declaration of conformity
