product details / scope of delivery

Description:

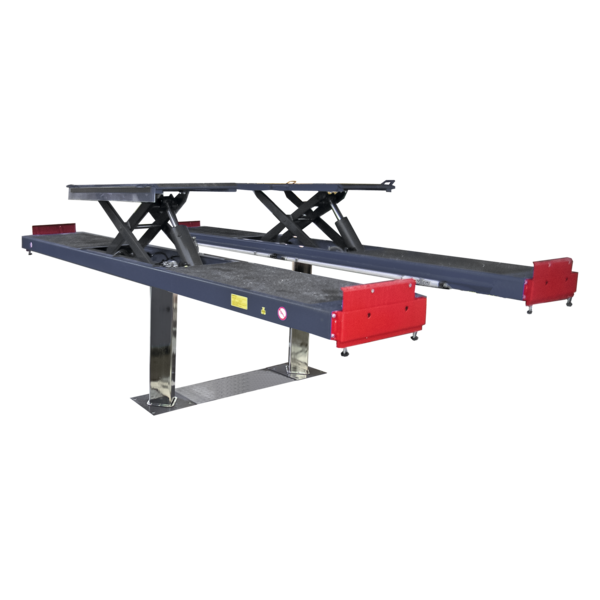

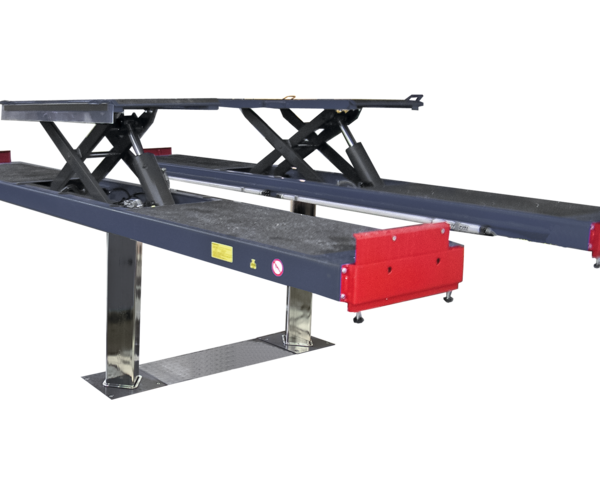

Two-post in-floor lift with driving platforms and
wheel-free jack

Description of driving platform:

  • Driving platform length 4800 mm ideal for carsand transporters
  • Ample freedom of movement below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle
  • Post lift with two lifting variants in one work area
    • Rapid lifting at wheels for inspection or chassis measurement
    • Lifts car wheels from surface, wheels exposed for repair or inspection, lifting distance 500 mm
  • Wheel-free jack extension elements infinitely adjustable while jackis in its starting position, thereby eliminating the need for time-consuming jacking for set-up and functioning as an interim means of stopping the jack from moving backwards in emergency cases
  • Lift can be driven onto easily thanks to wheel-free jack platforms with full driving platform width
  • Wheel-free jack holder fully granulate-coated as standard
  • Optionally, can be upgraded to vehicle check-in lift with driving platform levelling for level driving, withaxle play tester to inspect chassis assemblies
  • Optional conversion to chassis measurement lift with precisely aligned driving platforms, sliding plates for tension-free wheel support, driving platform levelling and axle measurement supports
  • A high-quality powder-coated platform covering assists in corrosion protection and adds a significant upgrade in terms of appearance
  • Optional driving platform coating with granulate coating
  • Additional corrosion-resistant treatment in the seam region and body cavity-sealing increases the service life
  • Pre-integrated compressed air connection and optional 230V/1PH energy supply in runways
  • All cables are protected inside the SQUARE post
  • Optional, no-dazzle rotatable LED lighting
  • Various assembly variants for optimum use:
    • Driving platform resting on floor with low drive-on height and platform movement area with no tripping hazard edges

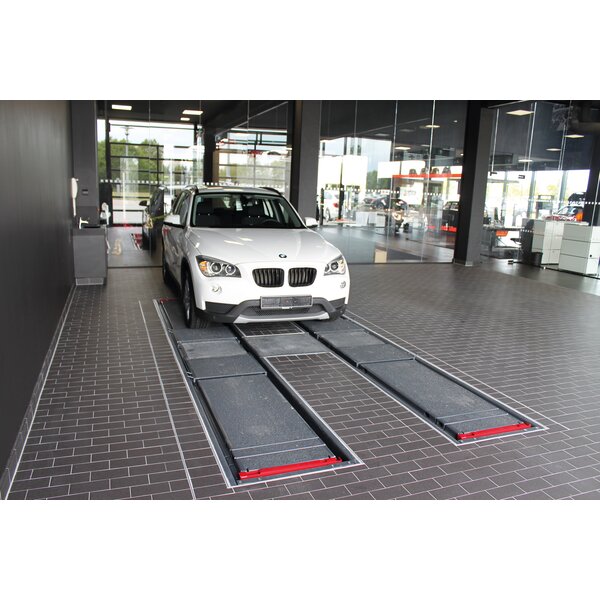

    • Driving platforms flush withfloor to facilitate driving onto the lift, no protruding assemblies in the lift area
    • Driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area with complete floor levelling of the platform movement area with no tripping hazard edges
  • Runways and ground levelling pre-equipped for the use of an optional axle lift
  • Pinch point and shear point protection thanks to CE stop


SQUARE lift unit:

  • Outstanding rigidity and optimum safety thanks to torsion-resistant square post
  • Very quiet pump and very quiet electric motor in corrosion-proof oil-submerged design, optionally with bio oil
  • Electronic lift control with no-contact, wear-free limit switches and visual error display
  • Very smooth running due to special long-life nickel coating on posts that promotes sliding, with robust, low-maintenance post design
  • Protected internal hydraulic safety cylinder guarantee lengthy service life
  • Mobile synchronisation and safety yoke for careful distribution of force in the post guide as standard
  • High lifting/lowering speeds are guaranteed (max. 30/20 s)
  • Battery-operated emergency lowering
  • Optimisation of workplace ergonomics mentioned thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system


Scope of delivery:

  • Driving platform 4800 mm and wheel-free jack powder-coated Anthracite Grey (RAL 7016)
  • Lift unit with hydraulic assembly
  • Ramps and drive-on plates
  • Rapid-action compressed-air coupling mounted on driving platform
  • Wiring and mounting material
  • Lift unit with movable yoke
  • Installation box/installation frame not included in delivery
  • Emergency DOWN cable for connection to switch box
  • Control unit with 2 x 10 m control cables (flexible oil cables)
  • Lockable master switch
  • Operating manual and test log
  • EC Declaration of Conformity CE


Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical data:

Load capacity CE5000 kg
Load capacity CE wheel-free jack3500 kg
Dimensions of driving
platform (L x W x H)4800 x 617 x 150 mm
Inner drive-through width950 mm
Total dimensions (L x W x H)5868 x 2184 x 206 mm
Max. lifting height2050 mm
Lifting distance, wheel-free jack500 mm
Wheel-free jack lengthways holder,
continuous1400 - 2100 mm
Wheel-free jack crosswise holder800 - 1900 mm
Size of support bar (L x W)450 x 605 mm
Wheel-free jack installation height56 mm
Post dimensions, square180 mm
Post spacing1567 mm
Installation depth2382 mm
Lifting/lowering time depending on loadapprox. 30/20 s
Lifting/lowering time of wheel-free jack
depending on loadapprox. 11/11 s
Hydraulic oil volume (not included)approx. 28 l
pressure/wheel-free jack180/210 bar
Control unit (H x W x D)400 x 280 x 120 mm
Drive power3.0 kW
Fuse gG16 A
Power supply3/N/PE 400 V 50 Hz
