product details / scope of delivery

Description:

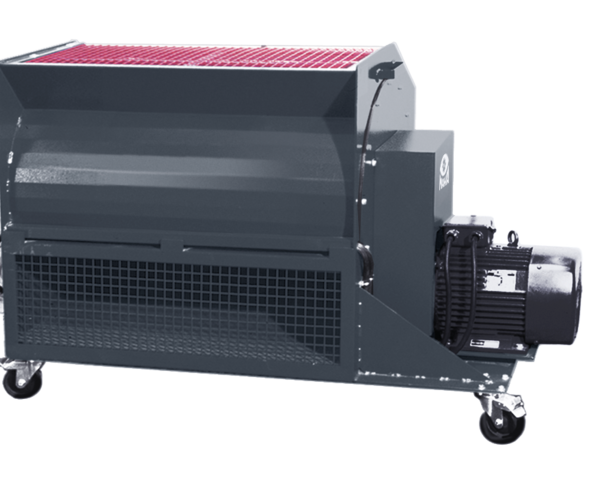

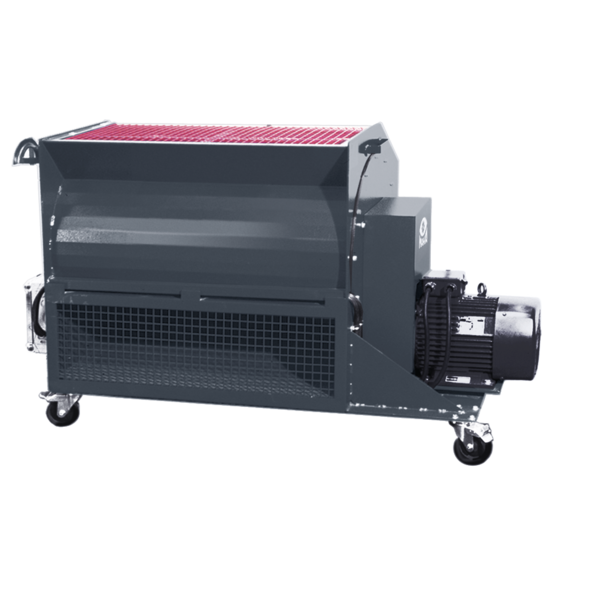

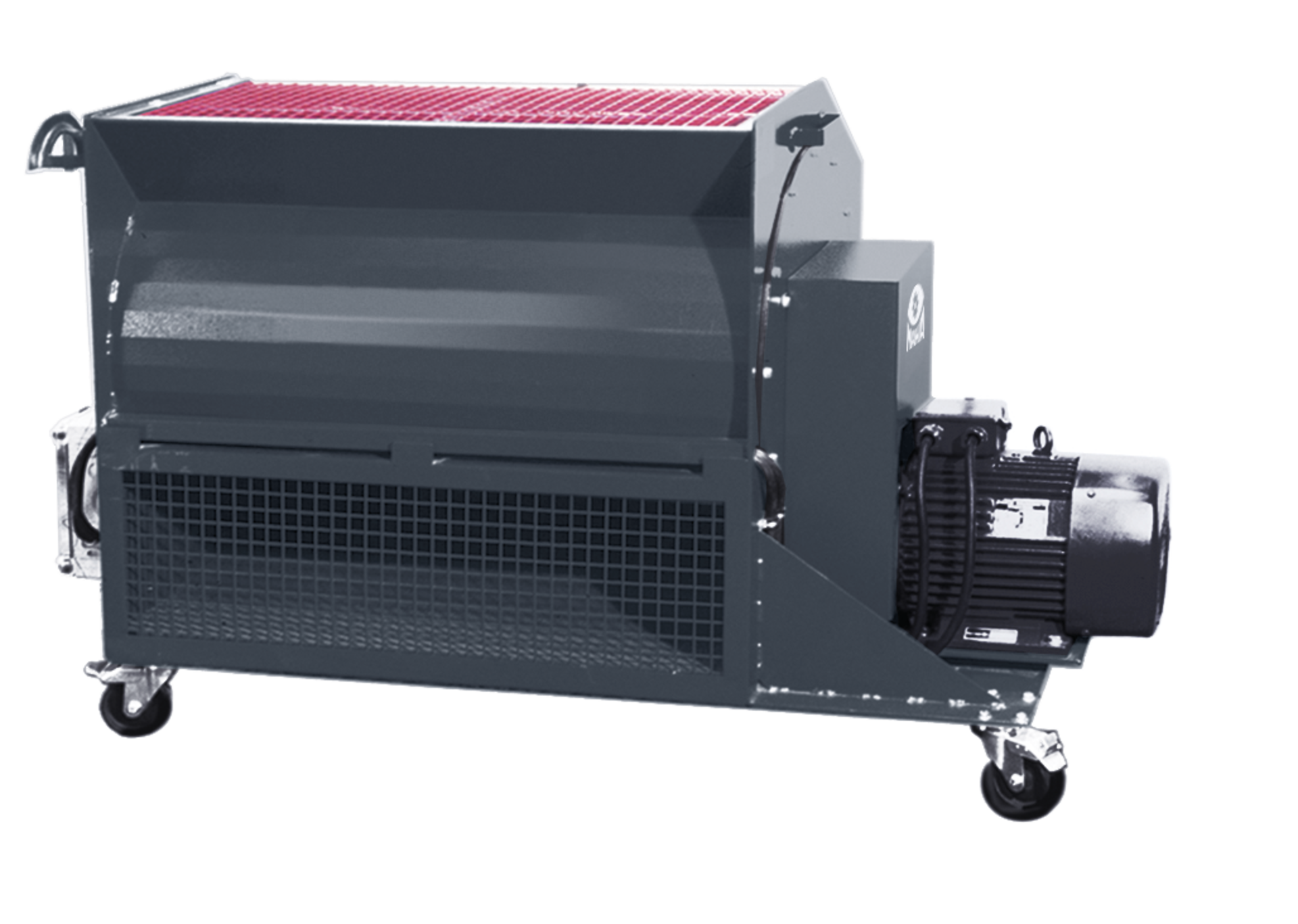

  • Universal air-stream fan for all cars, trucks and motorcycles
  • Wide exhaust passage for targeted air routing towards the vehicle radiator and underneath the vehicle in order to avoid any heat build-up
  • Preventsvehicle damage and overheating of the drive units
  • Easily manoeuvrable with 4 rubber-tyred steerable fixed castors
  • Varnished with high-quality powder coating: Window Grey, RAL 7040

Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical Data:

Air power21000 m³/h
Airflow velocity78 km/h
Motor power2.2 kW
Fuse16 A
Power supply3/N/PE x 400 V 50

Hz

Weight192 kg
Dimensions (H x W x L)900 x 730 x 1250 mm
