product details / scope of delivery

Description:

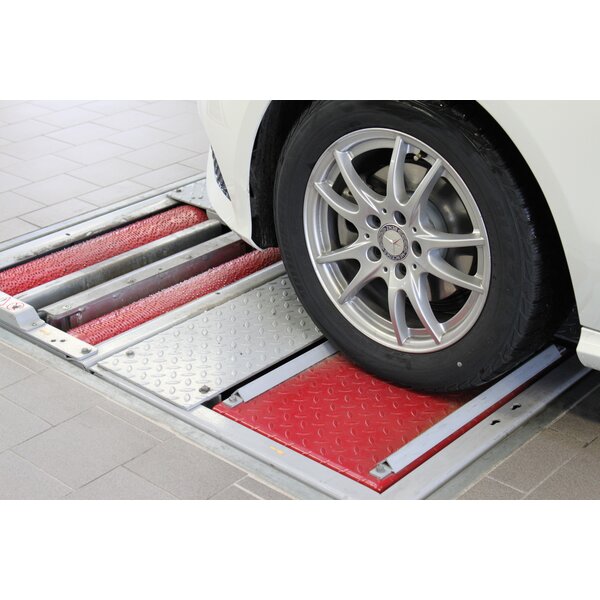

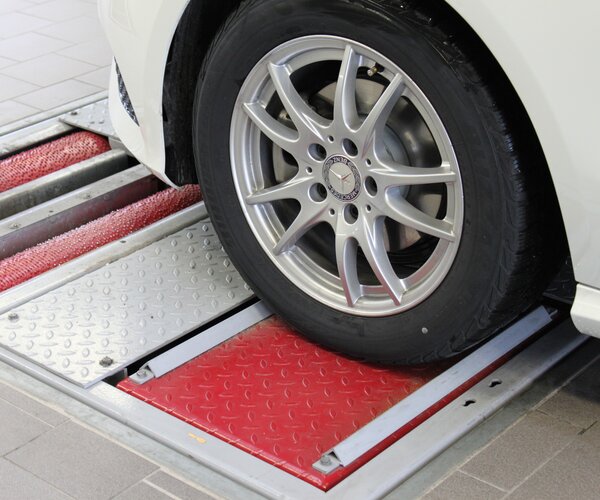

Shock absorber tester for quick and precise,
physical shock absorption testing
of cars und vans up to 13 t axle load (traversable)

Specially suitable for car reception, diagnostic and
PTI test lanes, in cases where the shock absorber tester must
be driven over with a higher axle load, in combination with
working pits

  • Evaluation based on Lehr's damping ratio
  • Automatic measurement of axle and vehicle weight with transfer of weight to brake tester (optional)
  • Fully-automatic test sequence launched once plate load of is more than 60 kg on both sides
  • Frequency-controlled plate excitation by electric motors to determine the maximum vibration amplitude, with subsequent evaluation ofaxle damping
  • Noise search function for pinpointing interference noises in the vehicle directly on the test stand (optional, only in conjunction with EUROSYSTEM)
  • Floor unit as self-supporting framework
  • Parallelogram-guided test plates and therefore no fixed wheel testing point necessary

In conjunction with CONNECT Web client:
Display on terminal device (Smart device, PC,)

  • with evaluation by Lehr's damping ratio D with deviation display and graphics

*In conjunction with EUROSYSTEM:

  • Display on PC screen with evaluation by Lehr's damping ratio D with deviation display and graphics


Design:

  • Shock absorber tester S W220
  • Self-supporting, split floor assembly (Split)
  • High-quality powder coating: anthracite grey, RAL 7016


Lieferumfang:

  • Achsdämpfungsprüfstand C_MSD S 13.0 W220 geteilte Bodengruppe
  • Vorbereitet zum Anschluss an Prüfstraße CONNECT


Downloads

Sales documents

Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Axle load (test capacity)2200 kg
Axle load (support capacity)13000 kg
Drive power2 × 1.1 kW
Excitation lift6.5 mm
Excitation frequency (regulated)2 - 10 Hz
Maximum plate lift70 mm
Measurement display
(damping ratio D )0.02 - 0.3 (without units)
gG fuse16 A
Power supply1/N/PE 230 V 50/60 Hz
Floor unit dimensions (H x W x L)280 x 800 x 1160 mm
