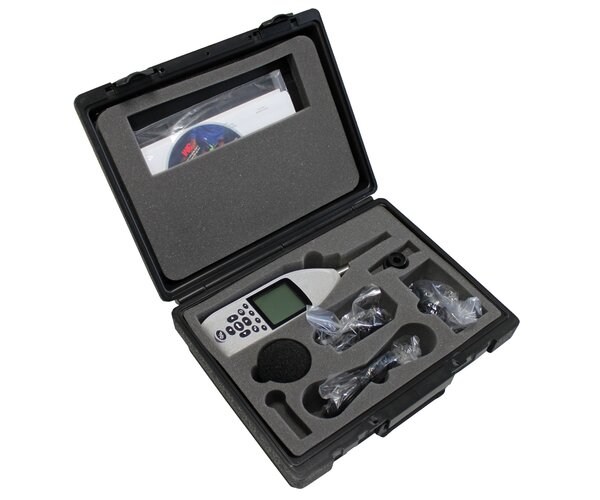

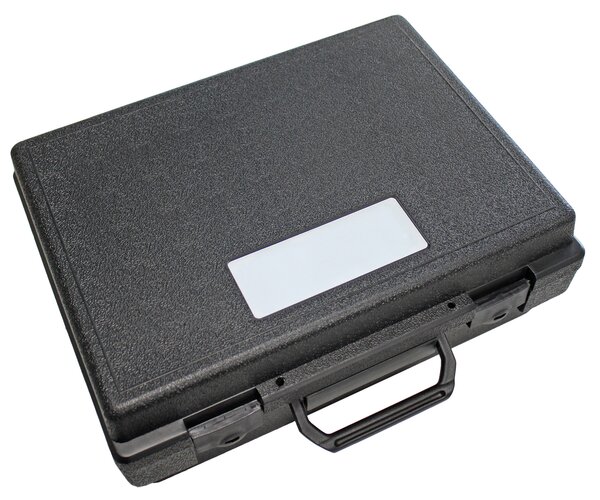

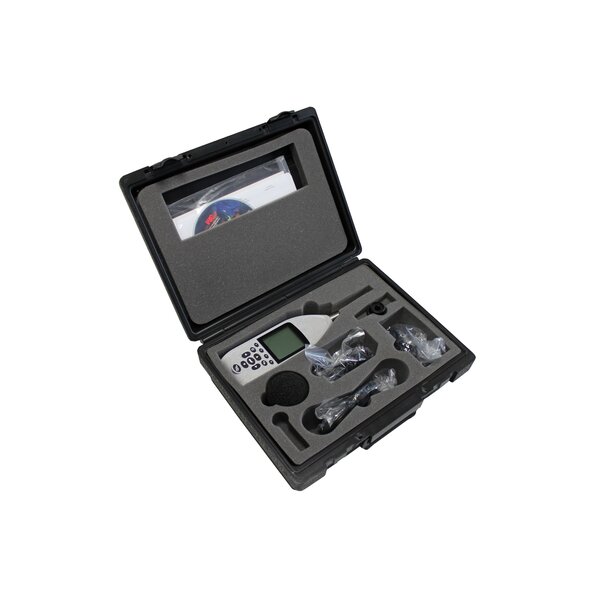

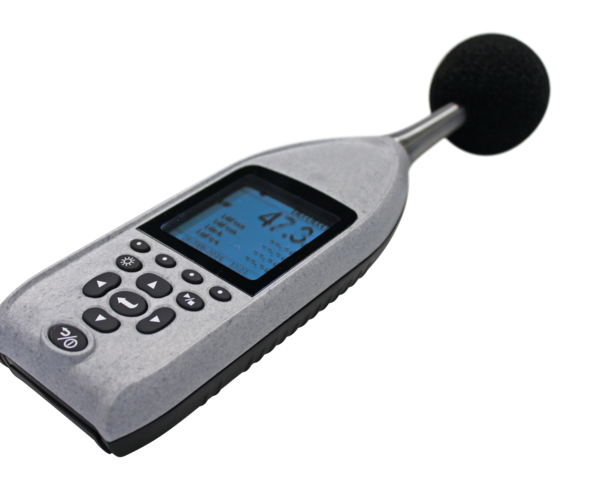

product details / scope of delivery

Specifications:

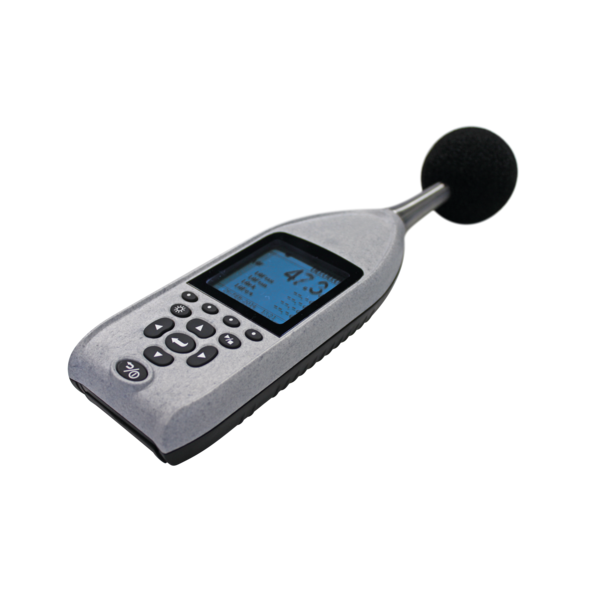

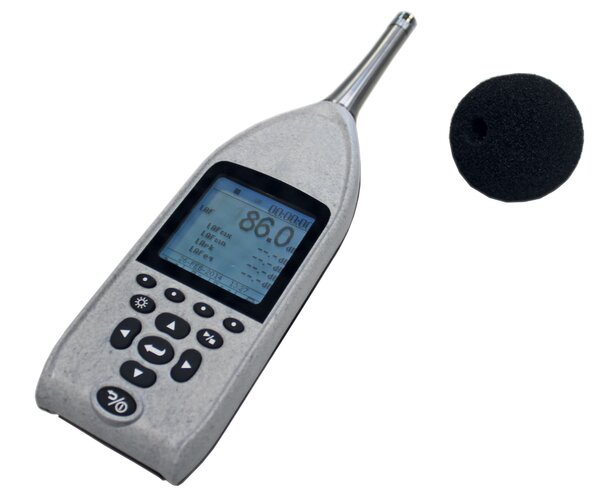

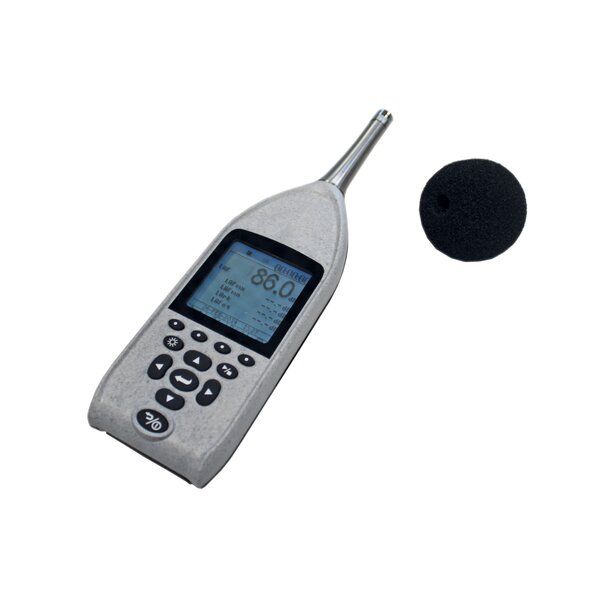

  • Measuring device, grade 2
  • Standards: ANSI S1.43-1997(R2007), ANSI S1.4-1983 (R2006), IEC 61672-1(2003), IEC 61010-1(2010), IEC 61000-4-2(2008), IEC 61000-4-3(2008)
  • Digital display with 0.1 dB resolution

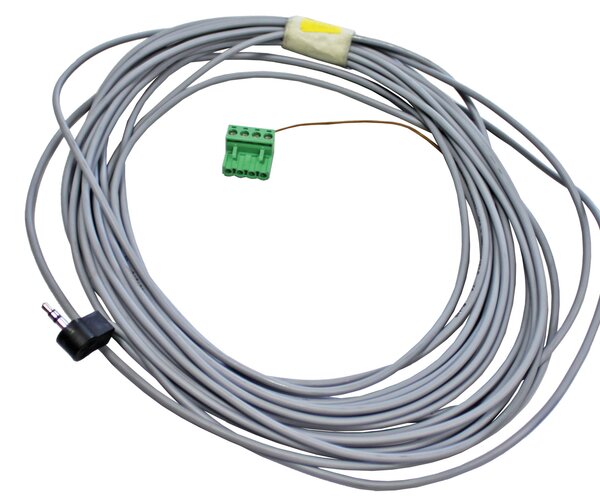

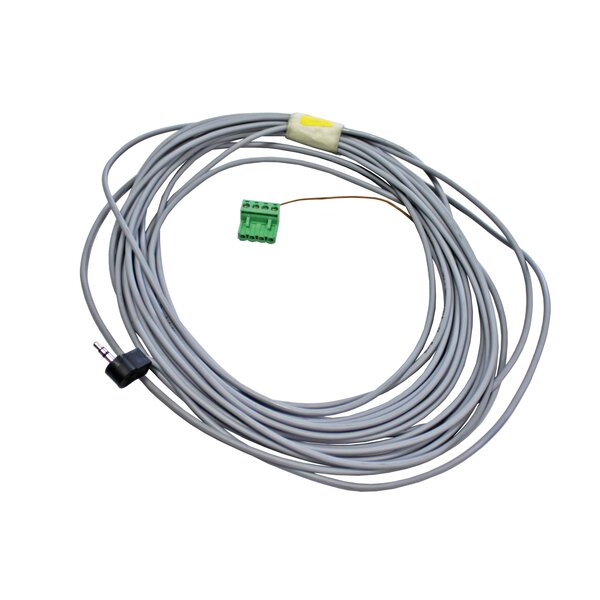

*Ports: AC/DC Output, USB

  • Frequency weighting: 'A', 'C', 'Z'
  • Meter response: Fast and Slow
  • System of Protection: IP65


Downloads

Sales documents

Technical Datasheet

Technical Data

Technical Data:

Measuring range30-140 dB
Temperature Range:
Operating temperature-10 °C...+50 °C
Storage-20 °C ..+60 °C
Battery-operatedLITHIUM 2500mAh AUFLADBAR
(AUFLADEN DER BATTERIE ÜBER USB PORT)
Dimensionsapprox. 71x284x33 mm (without microphone)
Weightapprox. 380 g
